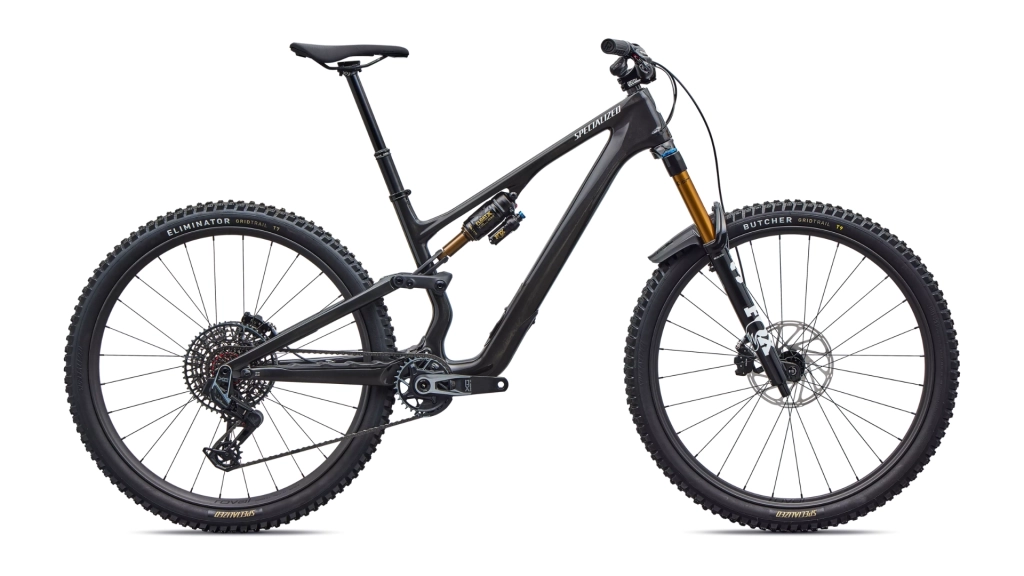

Quadro
FACT 11m carbon chassis, rear-end and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
-
Suspensão
FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
-
Aperto Espigão
Alloy, 38.6mm
-
Amortecedor

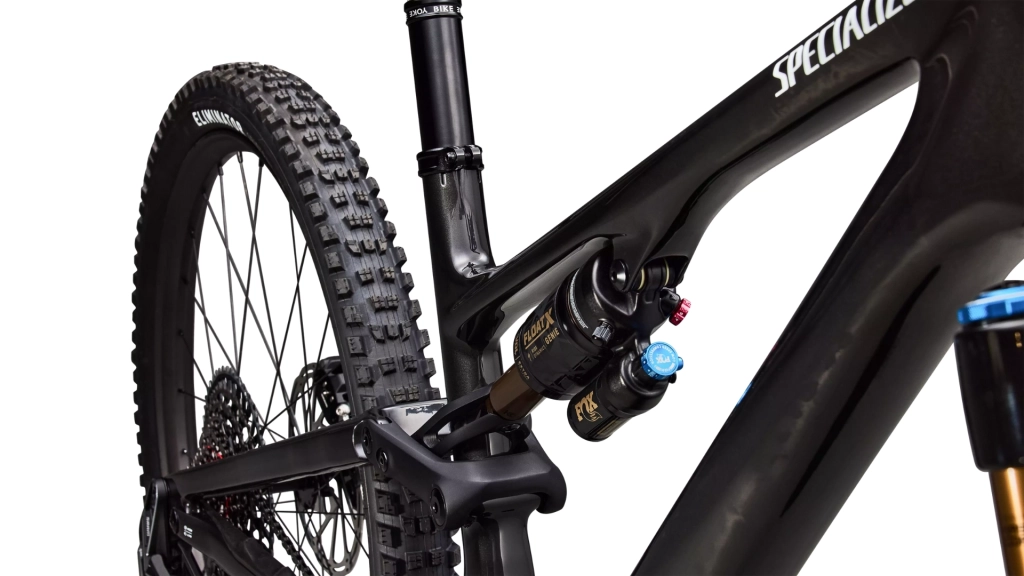

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm
-
Travão Dianteiro
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm Centerline Rotor
-
Travão Traseiro
SRAM Maven Silver, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm Centerline Rotor
-
Manípulos Mudanças
SRAM AXS POD Controller w/discrete clamp
-
Mudança Traseira
SRAM X0 Eagle Transmission
-
Cassete
SRAM XS 1295, 12 speed, 10-52
-
Corrente
SRAM X0
-
Pedaleiro
SRAM X0 Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
-
Eixo Pedaleiro
SRAM DUB Threaded Wide
-
Avanço
Deity, 35mm clamp, 42mm length
-
Guiador
Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
-
Selim
Bridge Expert with MIMIC, Hollow Ti rails, S1-S2: 155mm, S3-S6:143mm
-
Espigão
Bike Yoke, Revive Max 3.0, 34.9, S1: 125mm, S2: 160mm, S3-S4: 185mm, S5-S6: 213mm
-
Pneu Dianteiro
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4
-
Pneu Traseiro
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
-
Rodas
Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, Industry 9 1/1 Hub, 15x110mm, 28h, Sapim D-Light Spokes
